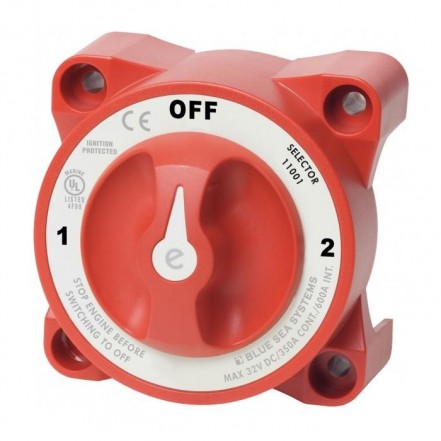

Switches isolated battery banks to all loads or combines battery banks to all loads.
Make-before-break contact design allows switching between battery banks without power interruption. Ignition protected, safe for installation aboard gasoline powered boats. Case design allows surface or rear panel mounting.
Switch Type:Selector 4 Position.
Switch Positions: 4.
Battery Combine: Yes.
Alternator Field Disconnect: No.
Maximum Voltage 32V DC.
Continuous Rating 350A.
Intermittent Rating 600A (5 min).
Cranking Rating 10 sec 2000A.
Cranking Rating 1 min 1000A.
Battery Inputs 2.
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm).
Cable Size to Meet Ratings4/0 AWG (120mm sq).
Mounting Holes Accept 1/4" (M6) Screw.
Terminal Stud Size 3/8"-16 (M10).
Terminal Stud Torque 140 in-lb (15.82 Nm).
Weight 1.30lb (0.59 kg).
